ART Tester 2.46.0.205 does not allow selection of SynAccess power outlet

[AlfredoAtSherpa]

Hello:
I am trying to setup an ETS project that uses SynAccess power outlet, but the ART would not let me do this.
I have tried to follow the instruction in the documentation.
Reading other posts and checking the documentation I realize there is no registry entry in Computer\HKEY_LOCAL_MACHINE\SOFTWARE.
What am doing wrong?

[brent]

Hello:
I am trying to setup an ETS project that uses SynAccess power outlet, but the ART would not let me do this.
I have tried to follow the instruction in the documentation.
Reading other posts and checking the documentation I realize there is no registry entry in Computer\HKEY_LOCAL_MACHINE\SOFTWARE.
What am doing wrong?

Did you follow the direction in the Readme for the "add_on_power-outlet" in the bundle? You have to load a dll to get it to show up.
See the following path in the zip package: ~\2025_08_21_PN-Test-V246\2025_08_21_PN-Test\PN-Test\add_on_power-outlet

[AlfredoAtSherpa]

Did you follow the direction in the Readme for the "add_on_power-outlet" in the bundle? You have to load a dll to get it to show up.
See the following path in the zip package: ~\2025_08_21_PN-Test-V246\2025_08_21_PN-Test\PN-Test\add_on_power-outlet

Hi Brent, thanks for your answer.

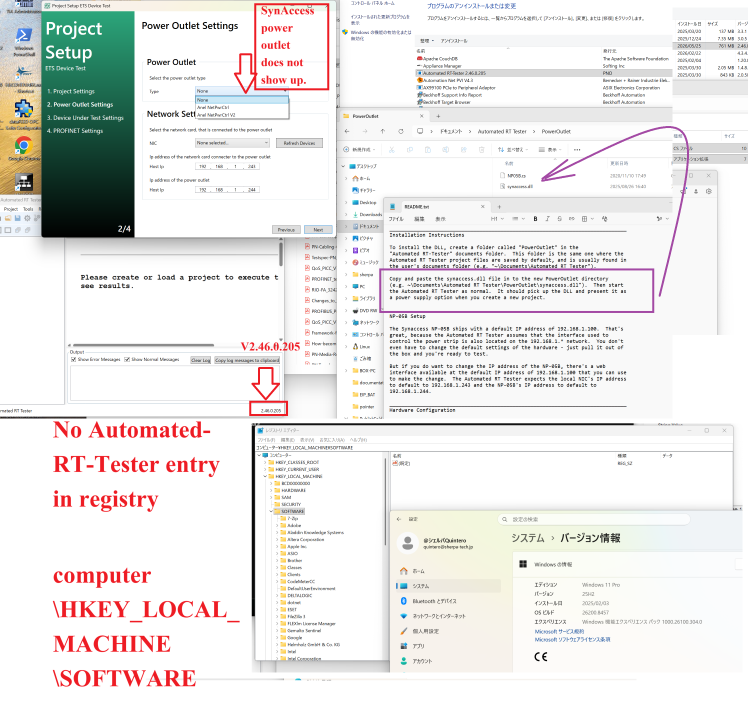

I guess you did not have the time to look at my screenshot which explains that I indeed followed the procedure in the test specification, and yet I am unable to select SynAccess as the power outltet for the test.
Will be grateful for more specific advice. Before I come to the forum I exhaust all possibilities, and I try to go through the formal documentation. For this one post I think I did, but I may have done something incorrectly.
Thanks for reading and commenting.
